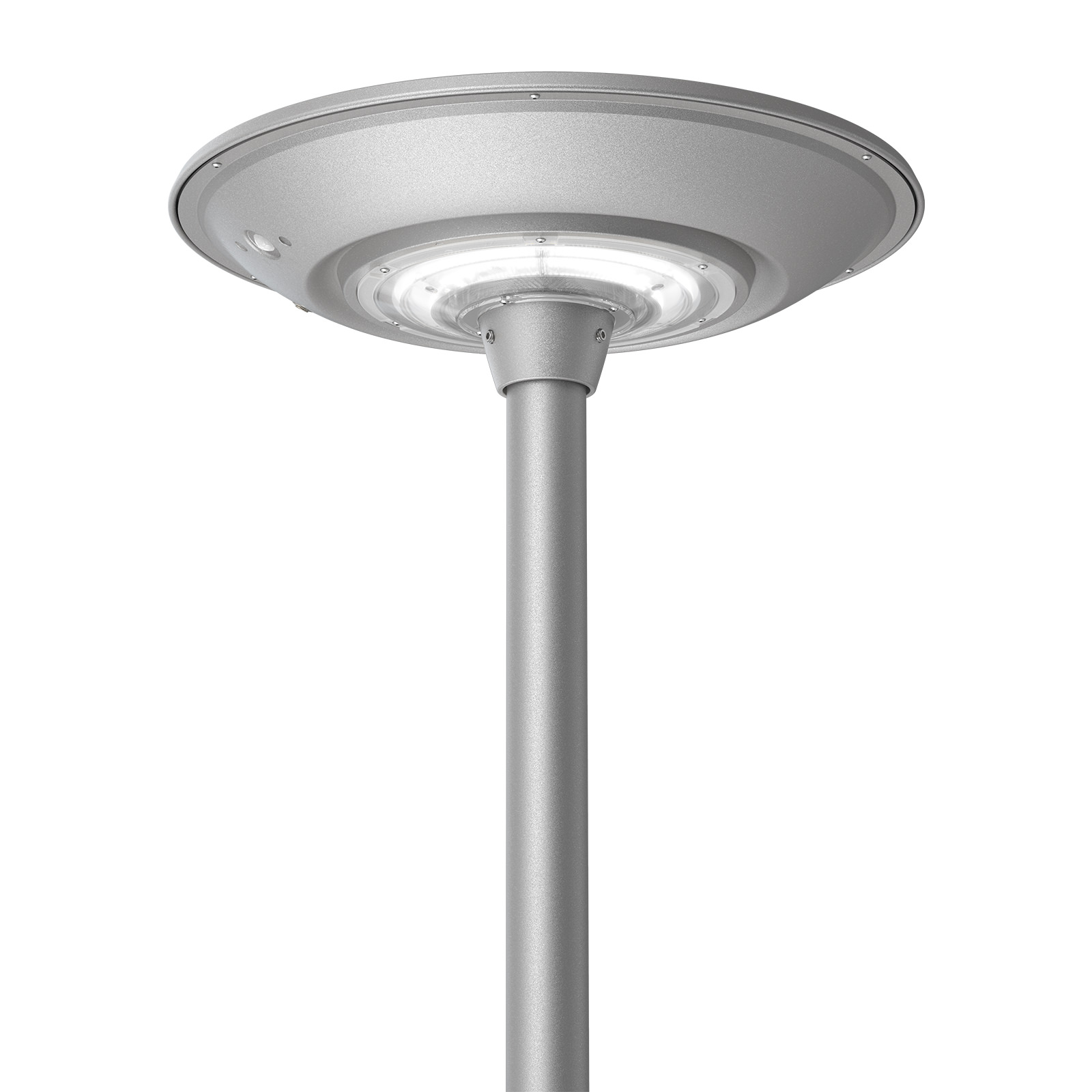

ST49 360° Coverage Solar Post Top Light
ST49 360° Coverage Solar Post Top Light

ST49 is a lighter weight integrated solar post top light, three wattages well satisfy different applications. The special optics design contributes to comfortable visual experience. The built-in PIR sensor support intelligent dimming control, and offer longer discharge time.

  • 360 degree coverage solar powered street light
  • Power ranges 10/20/30W with 130lm/W
  • EPA 0.22m²/2.368ft²
  • IP65 Rating
  • Adopt LiFePO4 battery and Mono-crystalline solar panel, full brightness discharging time up to 9 hours
  • Timer dimming and PIR sensor available
  • Operating temperature from 0 to 50 degree
  • 5 years warranty
Electrical Information
Model No ST49-010 ST49-020 ST49-030
Power Consumption(±5%) 10W 20W 30W
Battery LiFePO4 battery
Battery Capacity 76.8Wh-6Ah 153.6Wh-12Ah 230.4Wh-18Ah
Solar Panels Mono-crystalline solar panel
Solar Panel Wattage 30W
Charging Time ＞3hours ＞6hours ＞9hours
   Operating Time Normal mode with 100% brightness>8hours, Intelligent mode 3-4 days
Solar Charge Controller MPPT
    Working Mode Refer to intelligent control
    Control Timmer dimming/PIR sensor

Optic Information
LED Type LED 2835
Luminous Flux (±10%) 1300lm 2600lm 3900lm
Efficacy(4000K Ra70) 130lm/W
Correlated Color Temperature 4000K (3000K, 5000K optional)
Color Rendering Index Ra70 (Ra80 optional)
Beam Angle R00C49
UGR Level NA

Dimentions and Mount
Product Dimension φ575x151mm
Luminaire Net Weight(±0.3kg ) 6.6kg 7.2kg 7.8kg
Export Carton Size 650x650x215mm
Gross Weight(±0.3kg ) 8.5kg 9.1kg 9.7kg
Mounting Option Post top mounting
Material Aluminum alloy
Polycarbonate optical lens
Mono-crystalline solar panel
Finish Powder coating
Fixture Color Silver
EPA 0.22m² (2.368ft²)
IP Rating IP65

Lifespan and Warranty
Operating Temperature 0°C to + 50°C
Life Time of LED @Ta=25°C 31000hrs-L90
64000hrs-L80
101000hrs-L70
Warranty 5 years
* Lumen output and efficacy are only for reference. Not all product variations listed on this page are DLC Standard/Premium qualified. Visit www.designlights.org/search to confirm qualification.
